Art. Nr: 80008

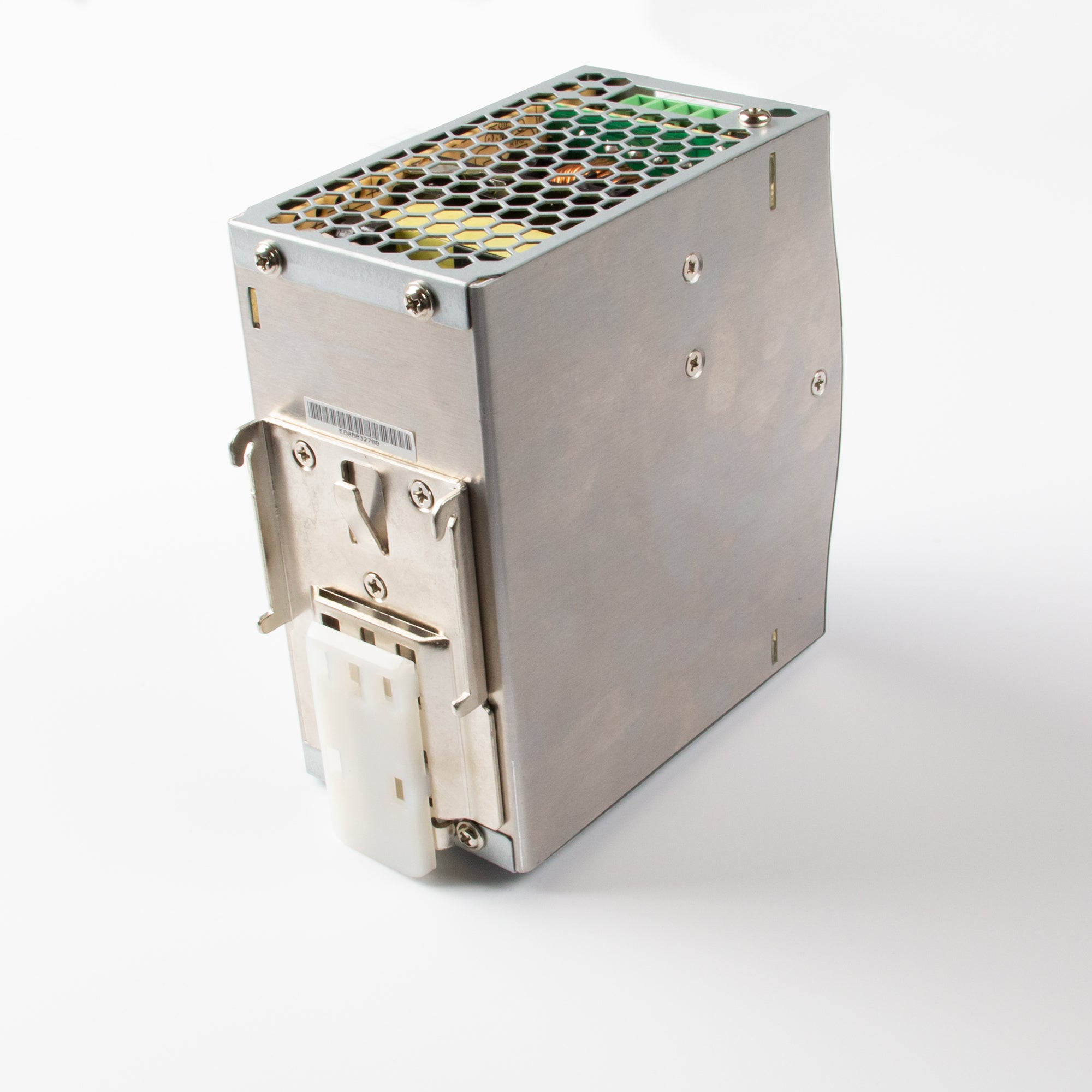

Power supply 24V DC, 240 W
A power supply for our electromagnets. It converts 230V AC to 24V DC and is equipped with a potentiometer to adjust the output voltage ±10% for long lines. Thanks to a wide input voltage range, the power supply can also be used in unstable networks.
€211.94
Content:
1
MagnaC.stockWarning
Quantity
Unit price
From
1
€211.94
From
3
€199.08
Total:
Product number:
80008
Product features
- Converts 230V AC to 24V DC. Output not earthed.
- Wide input voltage range allows use in unstable networks.
- Equipped with potentiometer to adjust the output voltage ±10% for long lines.
- The output side tolerates continuous short circuit and continuous no-load operation.
- Mounting rail installation (DIN EN 50022).
- Encapsulated, for installation in the control cabinet.
- Screw-type connection terminals on the front.
- Ambient temperature 0°C to +60°C.
- Self-cooling by natural convection.
- Degree of protection IP 00, protection class 1.
- Operating display via LED.
- Automatic shutdown at internal temperature >135°C.
Description
| Length (mm): | 126 |
|---|---|
| Width (mm): | 100 |
| Height (mm): | 126 |
| Weight (kg): | 0.987 |
| Additional property: | Ausgangsleistung (W): 240 |
