Art. Nr: 80006

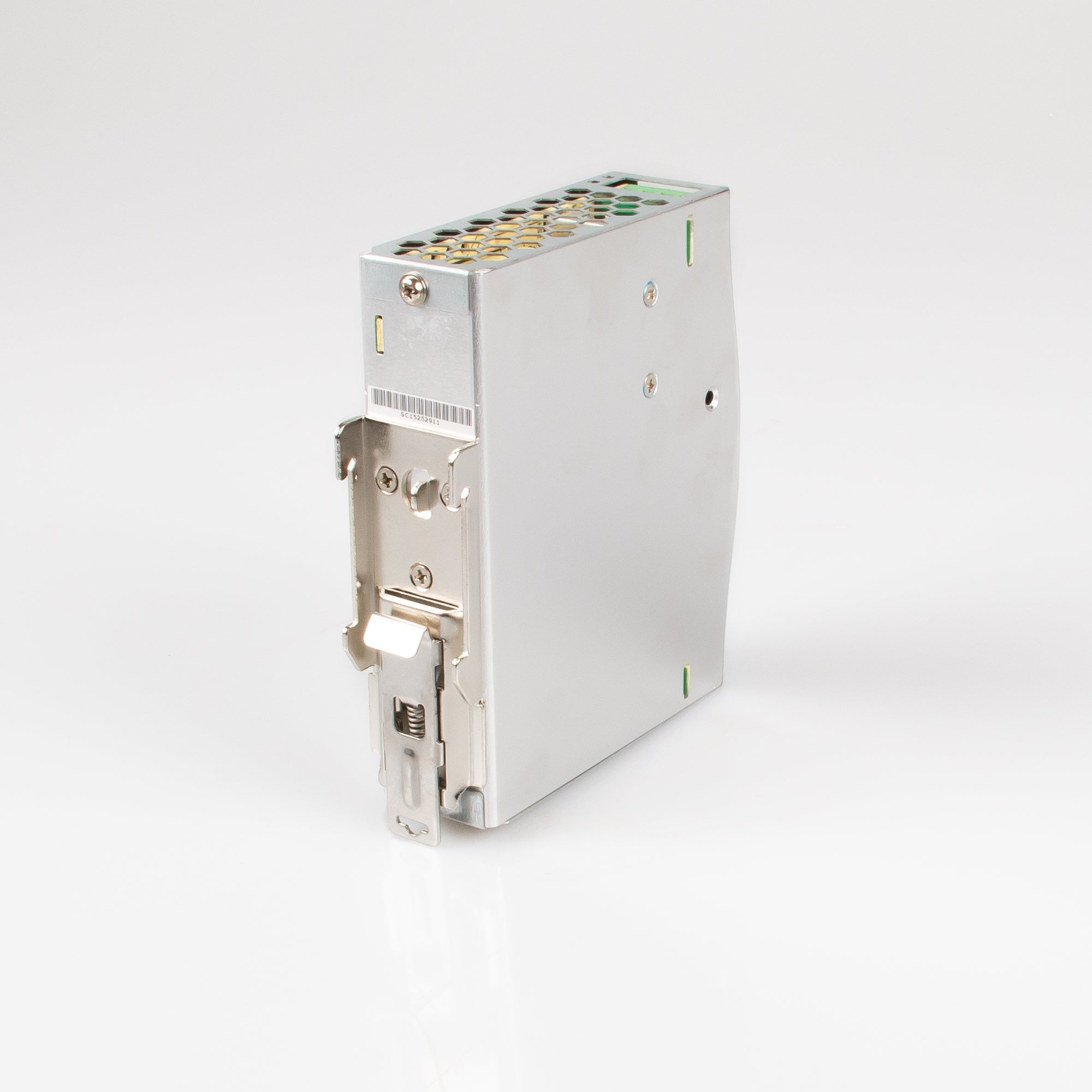

Power supply 24V DC, 75 W
A power supply for our electromagnets. It converts 230V AC to 24V DC and is equipped with a potentiometer to adjust the output voltage ±10% for long lines. Thanks to a wide input voltage range, the power supply can also be used in unstable networks.
€126.44
Content:
1
Shipping in 1-2 business days
Quantity
Unit price
From
1
€126.44
From
3
€115.82
Total:
Product number:
80006
Product features
- Converts 230V AC to 24V DC. Output not earthed.
- Wide input voltage range allows use in unstable networks.
- Equipped with potentiometer to adjust the output voltage ±10% for long lines.
- The output side tolerates continuous short circuit and continuous no-load operation.
- Mounting rail installation (DIN EN 50022).
- Encapsulated, for installation in the control cabinet.
- Screw-type connection terminals on the front.
- Ambient temperature 0°C to +60°C.
- Self-cooling by natural convection.
- Degree of protection IP 00, protection class 1.
- Operating display via LED.
- Automatic shutdown at internal temperature >135°C.
Description
| Length (mm): | 126 |
|---|---|
| Width (mm): | 100 |
| Height (mm): | 56 |
| Weight (kg): | 0.406 |
| Additional property: | Ausgangsleistung (W): 75 |
Further sizes
Art. Nr: 80007
Power supply 24V DC, 120 W
A power supply for our electromagnets. It converts 230V AC to 24V DC and is equipped with a potentiometer to adjust the output voltage ±10% for long lines. Thanks to a wide input voltage range, the power supply can also be used in unstable networks.
-
From 1€168.86
-
From 3€156.80
Art. Nr: 80008
Power supply 24V DC, 240 W
A power supply for our electromagnets. It converts 230V AC to 24V DC and is equipped with a potentiometer to adjust the output voltage ±10% for long lines. Thanks to a wide input voltage range, the power supply can also be used in unstable networks.
-
From 1€211.94
-
From 3€199.08
