Art. Nr: 81063

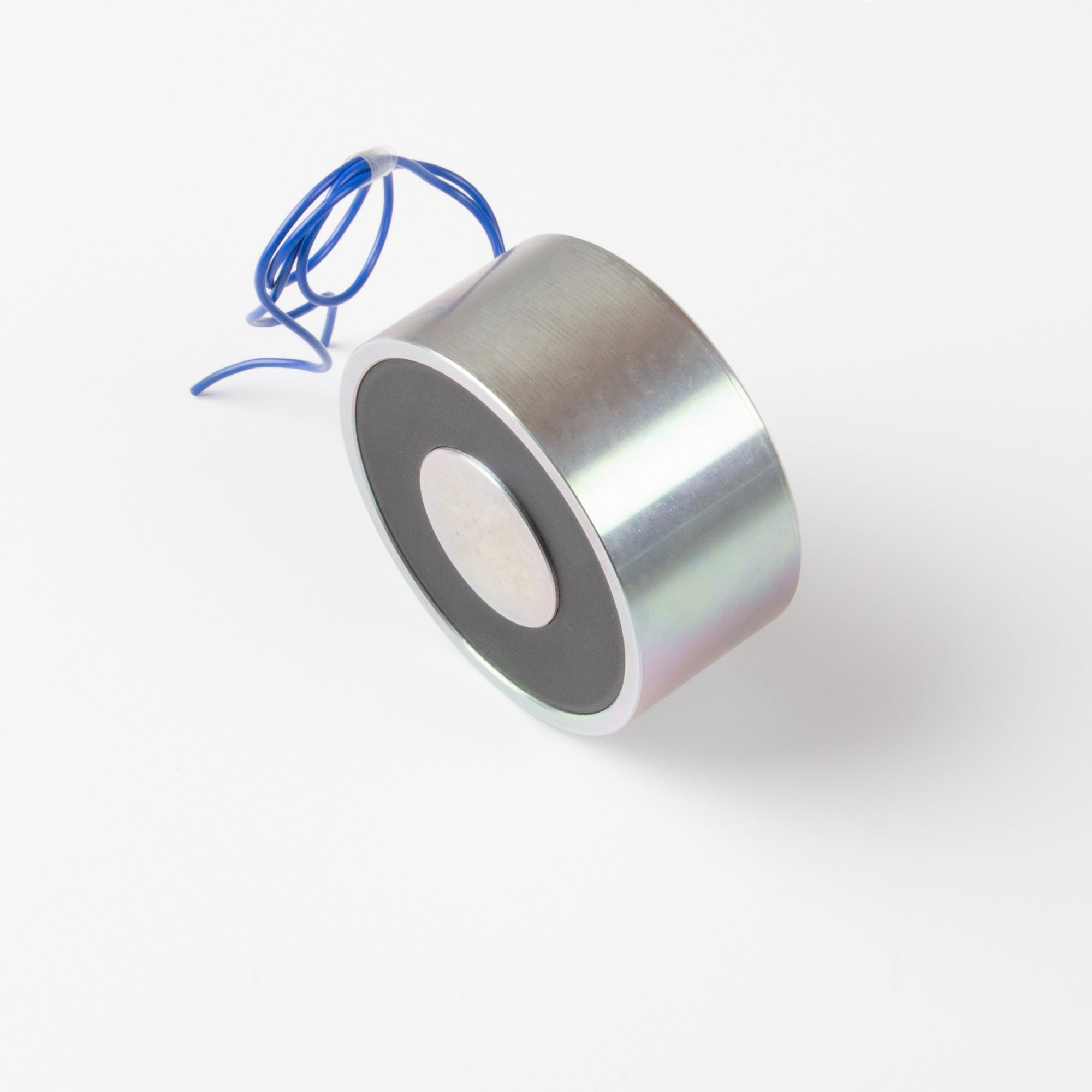

Electromagnet Ø63x30mm
The magnetic force of this electromagnet is generated after applying a DC voltage. The coil in the core of the magnet system generates a magnetic field when current is supplied, which disappears after the voltage is switched off. Therefore, electromagnets are referred to as “switchable”.
€100.19
Shipping in 1-2 business days
€100.19
€97.05
€94.99
€87.01
Product features
- Long service life due to encapsulated coil.
- Blue chromium-plated steel cup.
- 100% duty cycle.
- Supply voltage 24V DC.
- Low power consumption.
- Insignificant residual magnetism of less than 5%.
Description
| Diameter ØD (mm): | 63 |
|---|---|
| Height (mm): | 30 |
| Diameter Ød1 (mm): | 28,2 |
| Thread size M: | M8 |
| Thread length L (mm): | 12 |
| Holding force (N): | 900 |
| Design: | with internal thread |
| Housing material: | steel |
| Color: | silver |
| Power (W): | 9 |
| Minimum material thickness (mm): | 7 |
| Switchable: | yes |
| Temperature resistance (°C): | 80 |
| Weight (kg): | 0.55 |
| Additional property: | Maß f (mm): 6 |
| Additional property 2: | Maß m0 (mm): 200 |
Technical Drawing
Areas of application
Electromagnets form their magnetic field after the application of a current and are not magnetic without current. As we learn in school, when a current flows through a magnetic conductor, a weak magnetic field forms around it.
The modern electromagnet consists of a coil (the magnetic conductor) that is wound around a ferromagnetic material to intensify the magnetic field that is created. The coil is installed in a steel pot and enclosed in a sealing compound. The protective steel pot is also magnetically conductive and guides the field lines of the magnetic field to the free holding surface.
Electromagnets are indispensable in today's industry. The ability to generate a strong magnetic field at the push of a button is used in a variety of industries:
- Material handling: Electromagnets are indispensable tools for industrial material handling because they can effortlessly lift and transport ferromagnetic loads such as steel plates or metal beams. They are often mounted on cranes or lifting devices to efficiently organize the flow of materials in warehouses, production plants or port facilities. The ability to precisely switch the magnetic field on and off allows loads to be held securely and positioned accurately.
- Assembly and manufacturing: In assembly and manufacturing processes, electromagnets are often used to fix or move workpieces during processing. They provide a stable hold without damaging the workpiece, particularly in metalworking processes such as welding, drilling or milling. Electromagnets are also useful in the production of complex assemblies, as they can precisely position different metal parts next to each other.
- Automation technology: Electromagnets are installed in robotic systems and automated conveyor systems to grip, move and place metallic components in a targeted manner. They offer the advantage of flexible integration into existing systems and help to standardize workflows and make production lines more efficient.
