Art. Nr: 36550

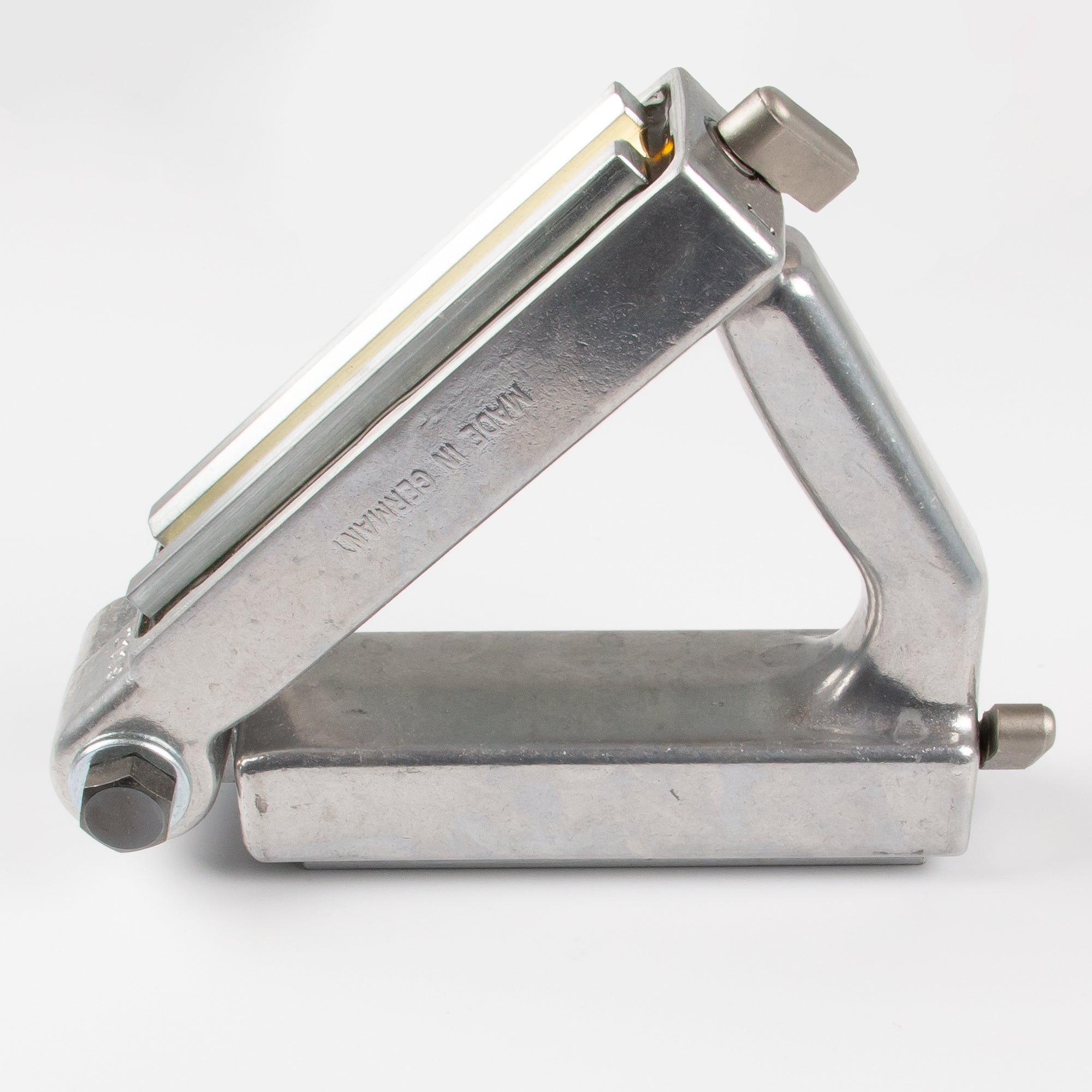

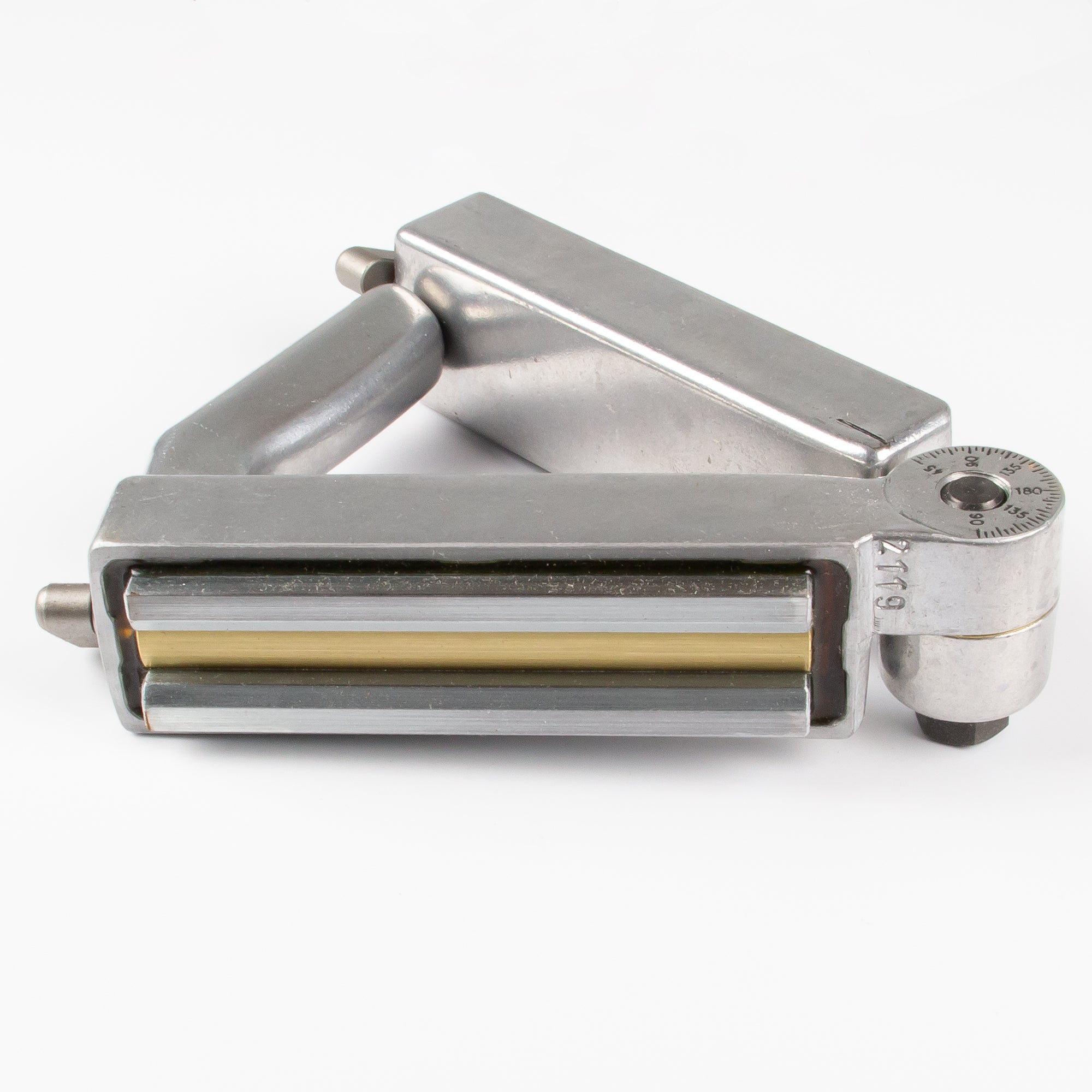

Switchable welding angle 45° to 270° swivel
Welding and assembly aid for welding, stapling, marking and screwing. Adjustable version for flat material with high temperature stability. Magnetic force can be switched on via a side switch on the arm.
Holding force per arm: 500 Newton.
€295.25
MagnaC.stockWarning
€295.25
€285.75
€275.50
Product features
- Holds welded parts in position. 45° to 270° swivel arm.
- Magnet power can be switched on at the right moment. Difficult readjustment is no longer necessary.
- No more risk of injury, because you release these angles smoothly.
- Suitable for round and flat cross sections.
- Weld spatter does not stick, but rolls off the aluminum housing.
- The welding angles are maintenance-free. The holding surface only needs to be wiped clean.
- No magnetization of the welded parts.
- High temperature stability.
Description
| Length (mm): | 180 |
|---|---|
| Width (mm): | 45 |
| Holding force (N): | 500 |
| Color: | silver |
| Switchable: | yes |
| Weight (kg): | 1.86 |
| Additional property: | Abmessung und Haftkraft bezogen auf einen Schenkel |
Areas of application
Switchable magnetic welding angles are assembly aids used in welding and metalworking to fix workpieces at a certain angle. They provide an easy way to hold components in place without the need for additional holding devices or hands. After use, the workpiece and welding angle can be removed without leaving any residue.
- Welding work: Magnetic welding angles are used to securely fix workpieces at the correct angle. They enable hands-free welding, as the magnet holds itself and the workpiece in a stable position.
- Assembly work: They help to prepare and position metal parts before they are welded or stapled. Ideal for assembling frames, brackets or other metal structures. Magnetic welding angles can also hold workpieces in the desired position while drilling, sawing or grinding is being carried out.
