Art. Nr: 36570

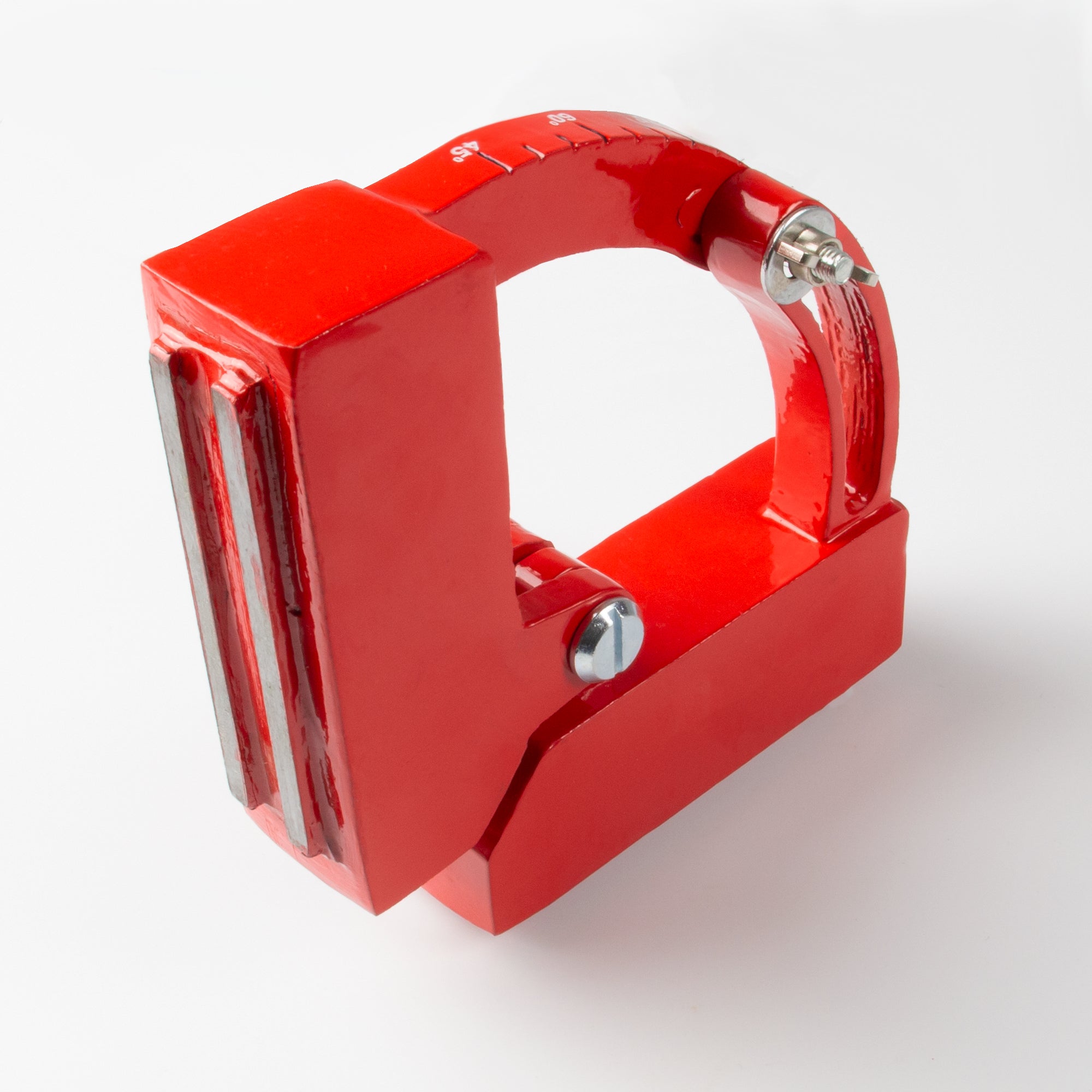

Adjustable magnetic welding angle in 5° increments
An adjustable magnetic welding angle with a scale in 5° increments. Allows precise angle adjustment for flat workpieces with high temperature stability.
Holding force per leg: 500 newtons.
€94.22
Shipping in 1-2 business days
€94.22
€78.00
Product features
- Practical for holding when stapling: sheets, plates and profiles.
- Ideal for short-term holding during assembly until the components are bolted.
- Precise angle adjustment via scale with 5° steps allows the professional to even take warpage into account.
- With high holding power, you can hold your weldments securely.
- Simply tilt to release.
- Suitable for flat workpieces.
- High temperature resistance.
- The magnetic welding angle is maintenance-free.
Description
| Length (mm): | 145 |
|---|---|
| Width (mm): | 35 |
| Holding force (N): | 500 |
| Color: | red |
| Switchable: | no |
| Weight (kg): | 1.478 |
| Additional property: | Abmessung und Haftkraft bezogen auf einen Schenkel |
Areas of application
An adjustable magnetic welding angle with a scale in 5° increments enables precise angle settings for flat workpieces and offers high temperature resistance. With an adhesive force of 500 newtons per leg, it is ideal for fixing sheets, plates and profiles during tacking or assembly. This makes it easier to align the workpieces precisely.
- Welding work: magnetic welding angles are used to securely fix workpieces at the required angle. They enable hands-free welding, as the magnet holds itself and the workpiece stable.
- Assembly work: They help to prepare and position metal parts before they are welded or stapled. Ideal for assembling frames, brackets or other metal structures. Magnetic welding angles can also hold workpieces in the desired position while drilling, sawing or grinding is being carried out.
