Art. Nr: 36192

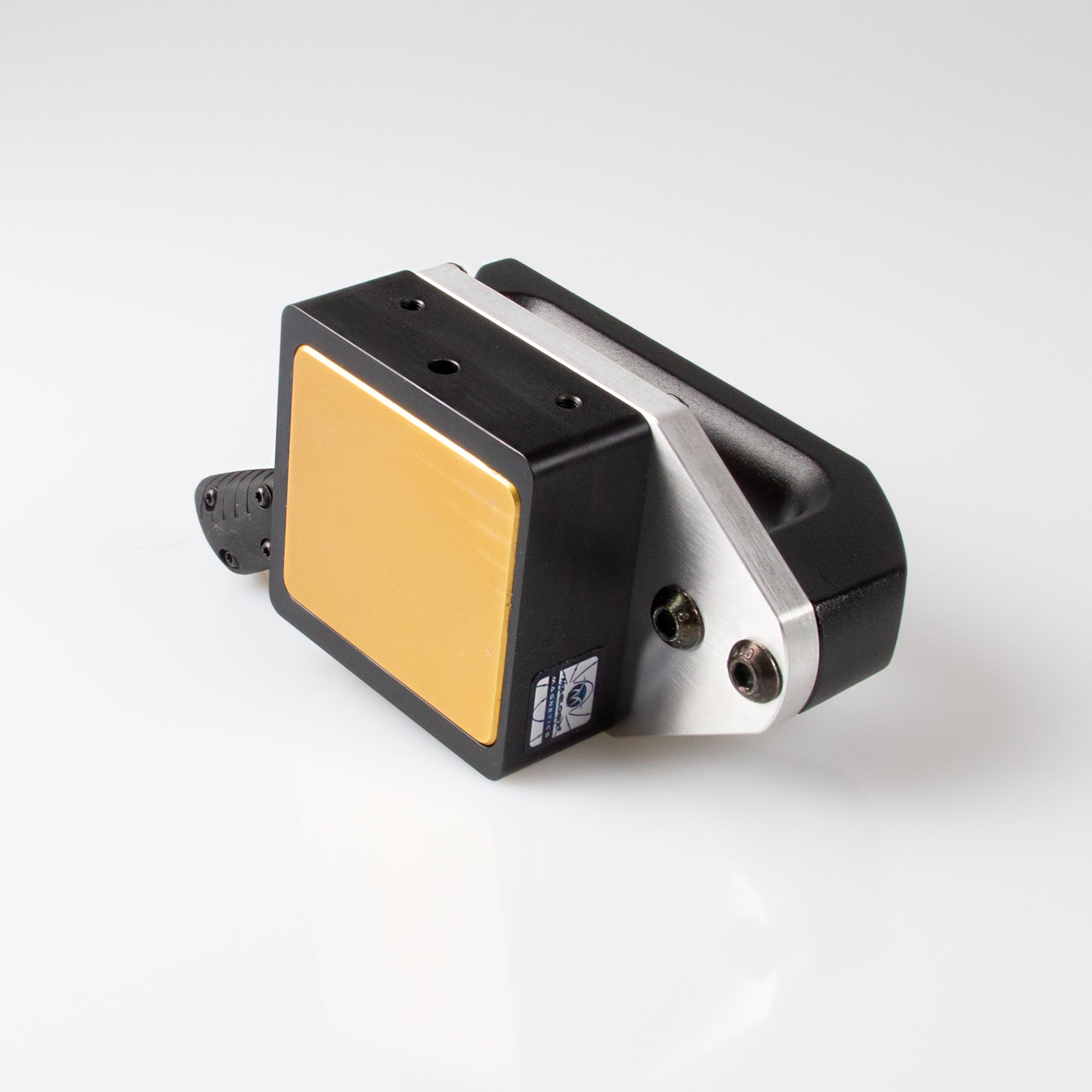

Extremely strong switchable magnetic base with handle
With a pull-off force of 300 kg from 6 mm material thickness, this magnetic base is designed for very demanding holding and lifting tasks. The switchable magnetic base can be placed gently, adjusted and, when the magnetic force is switched on, it holds bombproof.
€390.00
Shipping in 1-2 business days
€390.00
€355.00
Product features
- 3000 Newton holding force on 6mm sheet metal.
- One-handed operation for fatigue-free working.
- M5 and M6 mounting threads on two sides and on top for optimal load attachment.
- Very low dead weight of only 1kg.
- TiN coating of the holding surface guarantees a long service life.
- Handle for conversion into a hand lever magnet.
Description
| Length (mm): | 126 |
|---|---|
| Width (mm): | 80 |
| Height (mm): | 100 |
| Holding force (N): | 3000 |
| Housing material: | steel |
| Color: | silver |
| Switchable: | yes |
| Weight (kg): | 2.027 |
| Additional property: | Mit Griff |
Areas of application
The extremely strong, switchable magnetic base with handle is designed for demanding holding and lifting tasks. With a pull-off force of 300 kg from a material thickness of 6 mm, it is ideal for industrial applications where heavy workpieces or sheets need to be lifted and transported safely.
- Lifting magnet: Ideal for lifting and positioning heavy metal parts in manufacturing processes. The handy handle allows the magnetic base to be lifted safely, while the strong magnetic force reliably holds the workpiece. After setting down, the holding force can be easily switched off using the lever on the side.
- Temporary fixings: Suitable for temporarily fixing equipment or fixtures to metallic surfaces.
