Art. Nr: 38210

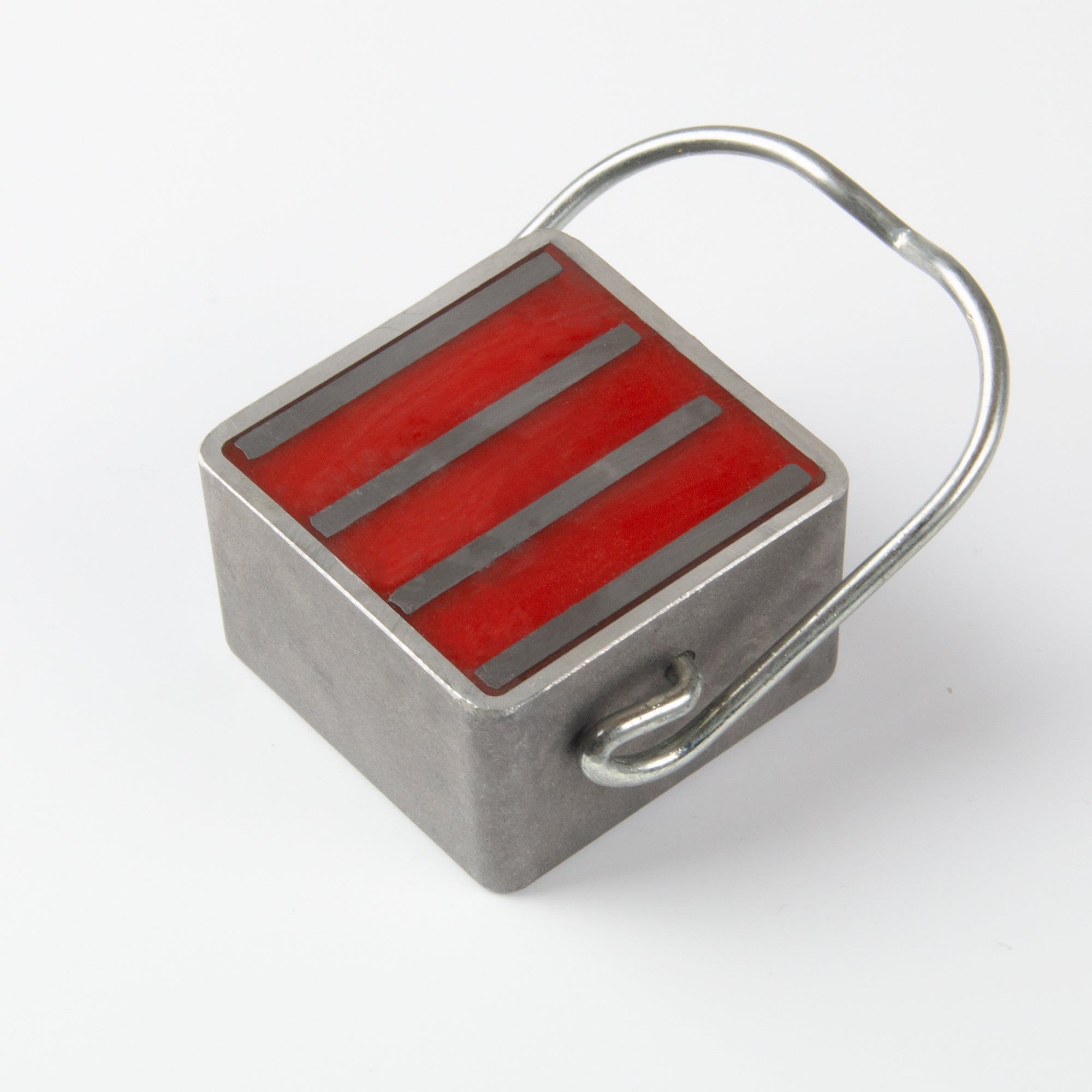

Magnetic base with release lever 60x60x37mm
Permanently magnetic base with a central internal thread M10x8 and a lever for releasing it from the holding surface. The robust housing protects the magnet even when roughly handled and the high adhesive force of 600 newtons (approx. 60 kg) allows for many uses.
€56.97
Shipping in 1-2 business days
€56.97
€54.30
€51.42
€48.41
Product features
- With the magnetic base, you can easily hold your measuring tool, magnifying glass, lamp or soldering iron in place.
- You can hang your drill or assembly tool from the ceiling using the M10 threaded hole.

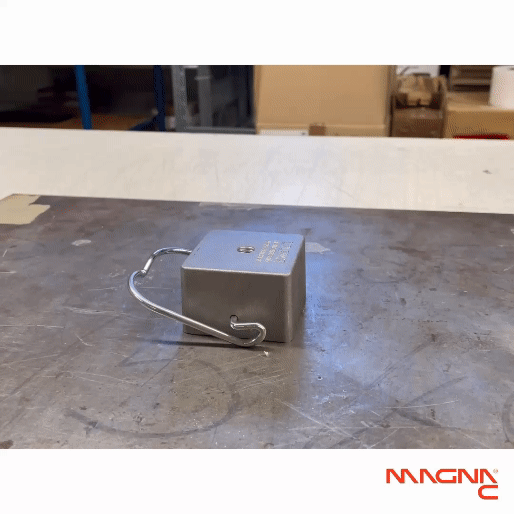

- With the release lever, you can easily detach the magnet from its holding surface.
- High holding forces create ample safety reserves.
- The robust aluminum housing protects the magnet system even when handled roughly.
- During installation, the magnetic base serves as a support with a large contact surface.
Description
| Length (mm): | 60 |
|---|---|
| Width (mm): | 60 |
| Height (mm): | 37 |
| Thread size M: | M10 |
| Thread length L (mm): | 8 |
| Holding force (N): | 600 |
| Magnet material: | ferrite |
| Design: | with internal thread |
| Color: | silver |
| Temperature resistance (°C): | 80 |
| Weight (kg): | 0.524 |
Areas of application
The magnetic base with release lever is used for the temporary fixing of objects such as holders, lamps or measuring devices on metallic surfaces. Thanks to its ample adhesive force of approx. 60 kg, the attached objects are held as if they were drilled and are still mobile. After attachment, the magnet can be lifted off the holding surface again using the release lever and leaves no residue.
- Tool and apparatus construction: Objects such as lamp holders or holders for measuring apparatus can be attached via the threaded holes and magnetically attached to iron surfaces. This allows lamps and measuring devices to be flexibly mounted where they are needed at that moment.
- Laboratory and research: magnetic bases are used in test laboratories to secure tripods and testing devices. Thanks to their switchable magnetic force, they adhere gently and without residue to ferromagnetic surfaces. This is particularly advantageous for walls and fixtures that must not be altered by drilling or screwing.
