Art. Nr: 36139

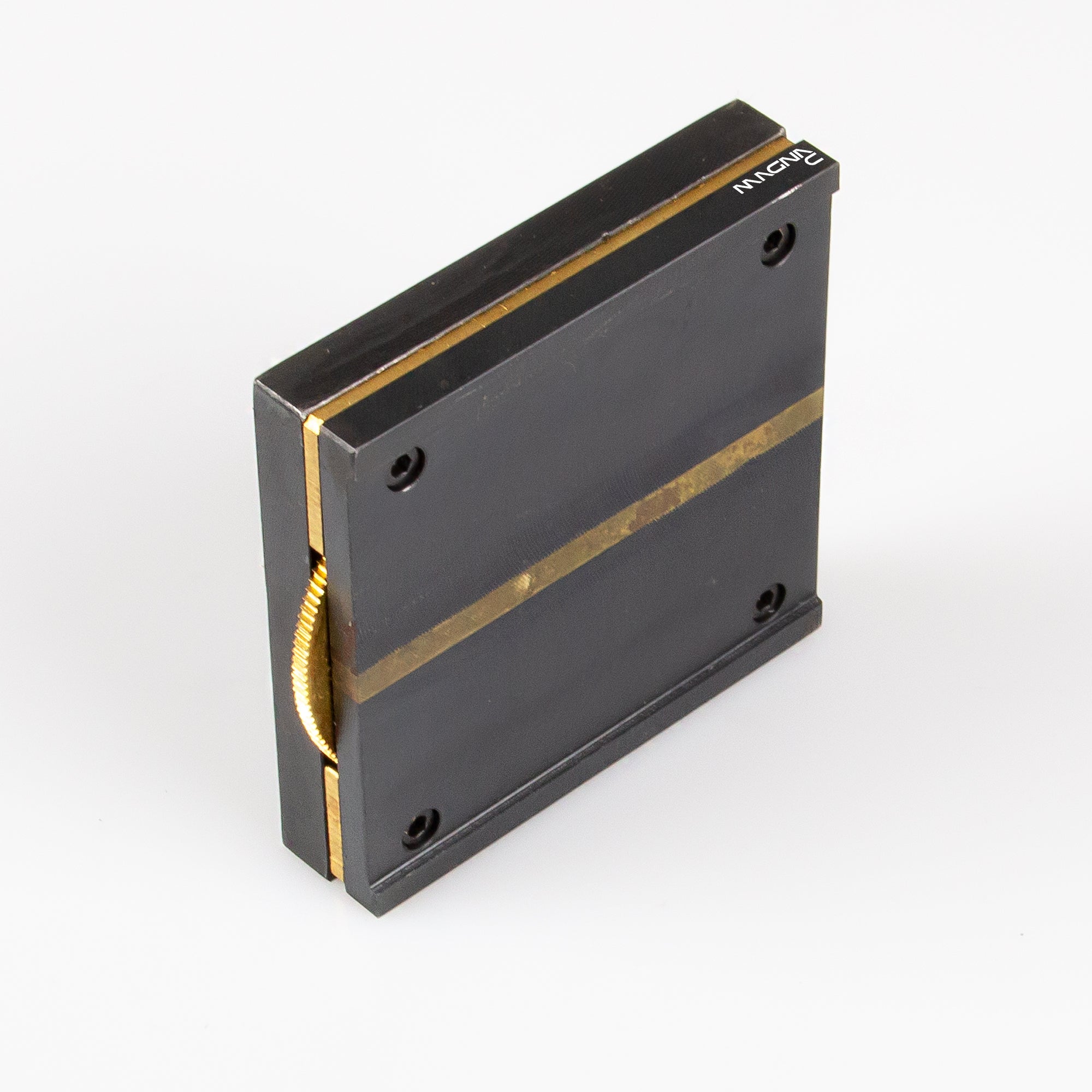

Switchable magnetic base 90x90x21mm
Switchable magnetic bases are used in tool and apparatus construction, as well as in test laboratories. Thanks to switchable magnetic force, the magnetic base can be placed gently, adjusted freely and holds firmly once switched on. Perfect for temporary fixings.
€81.87
Shipping in 1-2 business days
€81.87
€74.85
€67.59
Product features
- They hold objects temporarily, for example for processing, for illumination and for testing.
- They allow the object to be placed gently on the holding surface and enable careful positioning before switching on.
- After the magnetic force has been switched off, the magnetic base can be gently removed without the use of force.
- The very flat, square design is not bulky and is also suitable for tight installation conditions.
- Load attachment via central bore M16x1 or 8 threaded holes M4.
- Switching operation with the thumb via a knurled wheel halfway up the cuboid.
- Burnished surface of the steel pole plates.
Description
| Length (mm): | 90 |
|---|---|
| Width (mm): | 90 |
| Height (mm): | 21 |
| Holding force (N): | 250 |
| Design: | with internal thread |
| Housing material: | steel |
| Color: | black |
| Switchable: | yes |
| Weight (kg): | 1.12 |
Areas of application
The switchable magnetic base is used for the temporary mounting of objects such as brackets, lamps or measuring devices on metallic surfaces. The magnetic force can be switched on and off, allowing the magnetic base to be placed softly and precisely positioned at first. After the magnetic force is switched on, it holds the attached objects securely and firmly:
- Tool and apparatus construction: Using the threaded holes, objects such as lamp holders or holders for measuring apparatus can be attached and magnetically fastened to iron surfaces. This allows lamps and measuring devices to be flexibly mounted where they are needed at that moment.
- Laboratory and research: magnetic bases are used in test laboratories to secure tripods and testing devices. Thanks to their switchable magnetic force, they adhere gently and without residue to ferromagnetic surfaces. This is particularly advantageous for walls and fixtures that must not be altered by drilling or screwing.
