Art. Nr: 38616

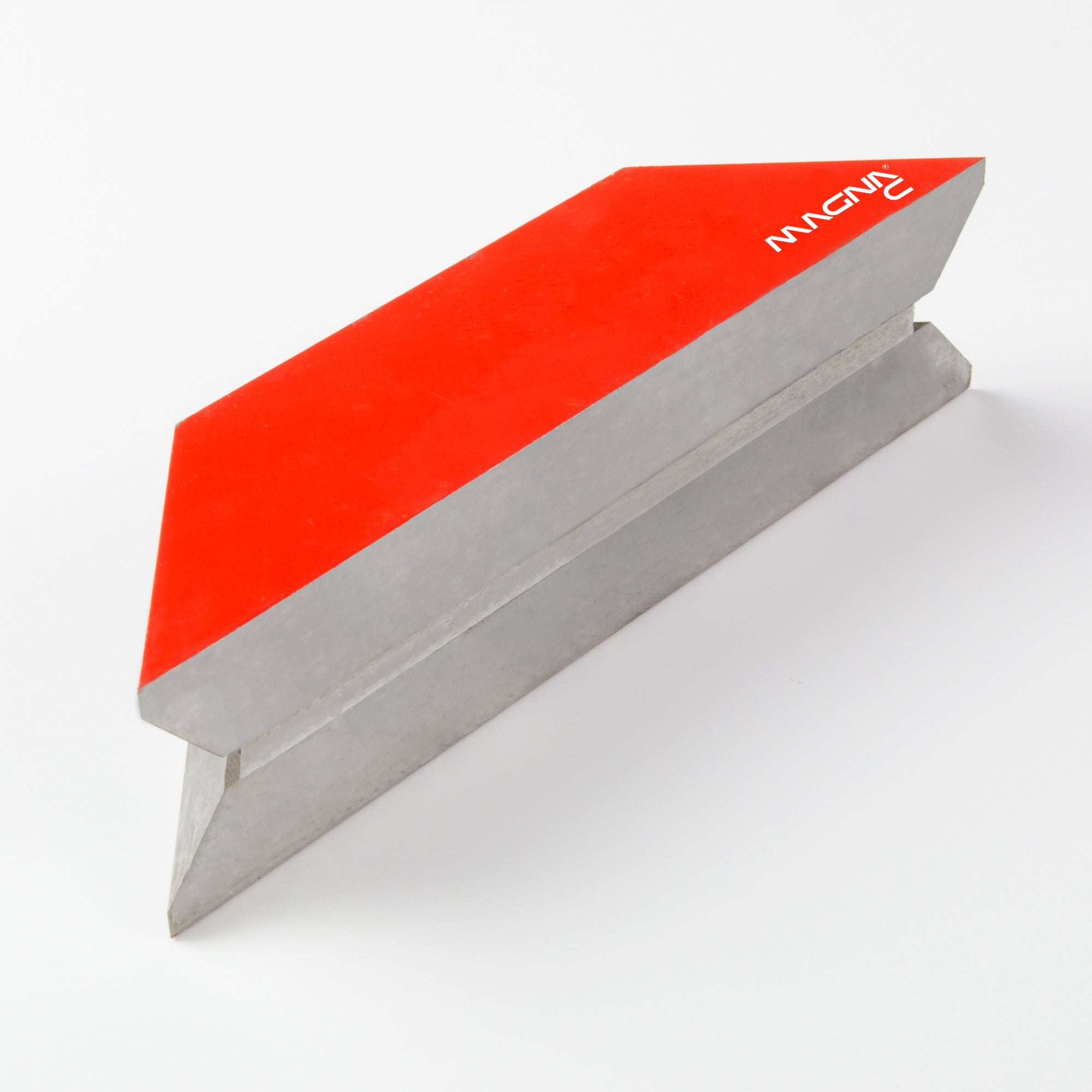

Heat-resistant AlNiCo pipe welding angle
A welding angle specifically for use with steel pipes and a temperature resistance of 450°C. Thanks to magnetic force, it relieves you of the need for other aids such as clamps and can be positioned with a click.
€103.50
Shipping in 1-2 business days
€103.50
€91.82
Product features
- Holds pipes up to Ø60mm at a right angle or in one plane.
- The pipe joint is fully accessible to you.
- Welded parts can be welded through the angle.
- The angle with AlNiCo core is heat-resistant up to 450°C.
- The prism legs open at 120° for a good hold on the pipes.
- Flattened pole surfaces on the outer edges of the prisms apply the full holding force even to flat workpieces and hold them at the right angle.
Description
| Length (mm): | 175 |
|---|---|
| Width (mm): | 44,5 |
| Height (mm): | 41 |
| Holding force (N): | 350 |
| Magnet material: | alnico |
| Housing material: | steel |
| Color: | red |
| Switchable: | no |
| Temperature resistance (°C): | 450 |
| Weight (kg): | 1.27 |
Areas of application
The heat-resistant AlNiCo pipe-welding clamp is specially designed for the precise positioning and fixing of steel pipes with a diameter of up to 60 mm during welding work. Thanks to its temperature resistance of up to 450°C, it is ideal for use in high-temperature environments. The magnetic force of the AlNiCo core allows for quick and secure positioning of the pipes without the need for additional aids such as clamps. This makes the welding process much easier and ensures a fully accessible weld seam.
In addition, the welding angle has prism legs that open 120° to ensure an optimal hold of the tubes. Flattened pole surfaces on the outer edges of the prisms also ensure full holding power even with flat workpieces.
