Art. Nr: 32719
Cylindrical, compact stop Ø25mm
A holding magnet for holding doors, flaps and gates. The magnetic force attracts the counterpart on the door and holds it open. The door can be closed again with a jerk.
€11.39
Shipping in 1-2 business days
€11.39
€10.50
€9.51
€8.63
Product features
- Keeps flaps and doors open or closed with a high holding force.
- Compact design despite strong magnetic force.
- Accepts the door or flap hitting the stopper at any angle around the cylindrical magnet system and requires only a line contact.
- Steel doors or flaps do not require a counter plate. Otherwise, a metal plate measuring 30x10x3mm is sufficient.
- The stop is attached with two M5 countersunk screws at a distance of 46mm.
Description
| Diameter ØD (mm): | 25 |
|---|---|
| Diameter Ød1 (mm): | 5,5 |
| Hole spacing a: | 46 |
| Holding force (N): | 150 |
| Weight (kg): | 0.072 |
Areas of application

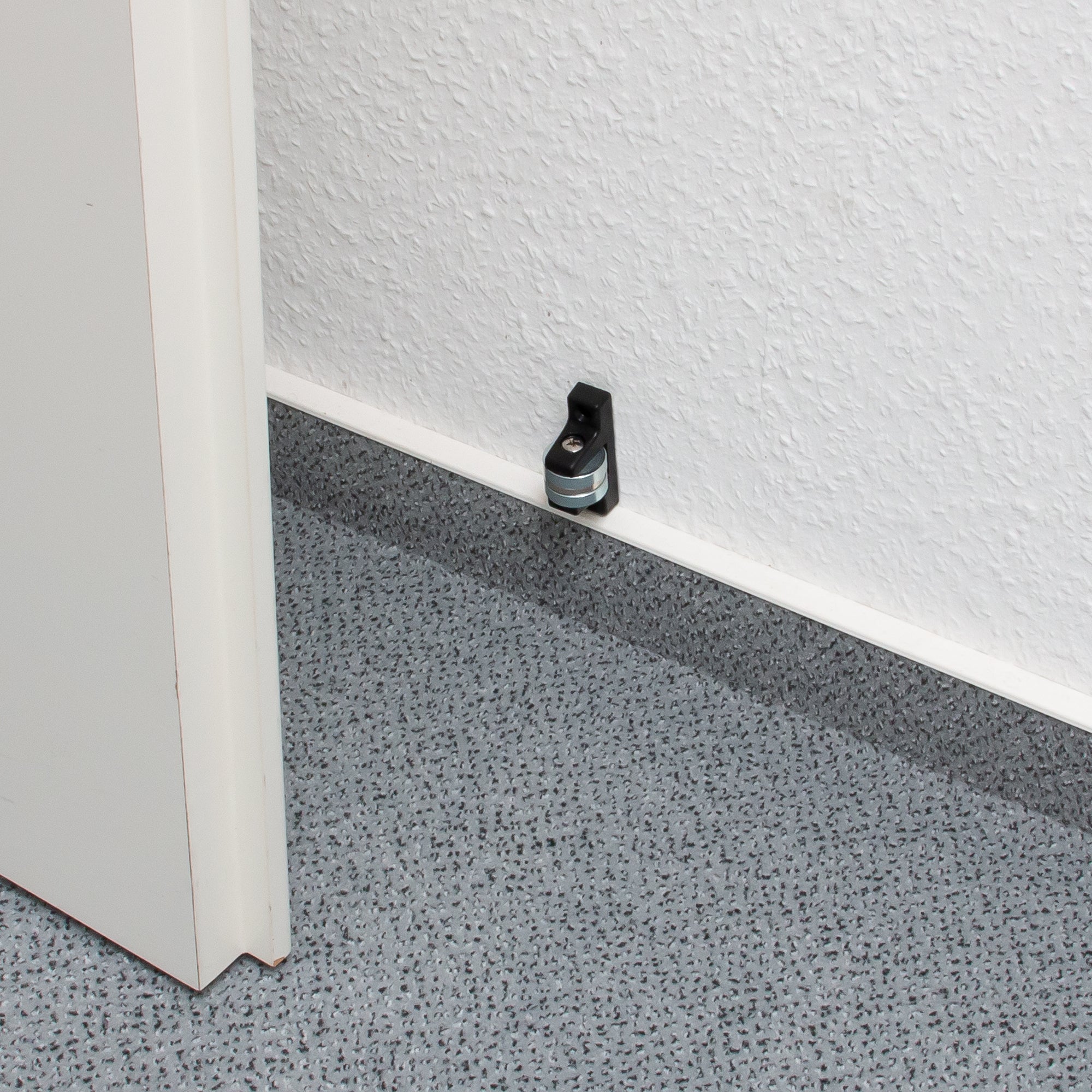

The small cylindrical stop with a diameter of 25 mm is a holding magnet used to hold open doors, flaps and gates. The magnetic force attracts the counterpart on the door and holds it in the open position. A jolt will close the door again. The compact and discreet design of the stopper allows for flexible mounting, since the door or flap can be stopped against the stopper at any angle around the cylindrical magnet system, requiring only line contact. This facilitates installation and increases versatility in various applications:
- Industrial applications: in factories or workshops, it can be used to hold heavy machine doors or protective covers open so that maintenance work can be carried out safely and conveniently.
- Public facilities: in schools, hospitals or office buildings, it can be used to fix doors in open positions, for example during peak times or events, to facilitate the flow of people.
