Art. Nr: 36005

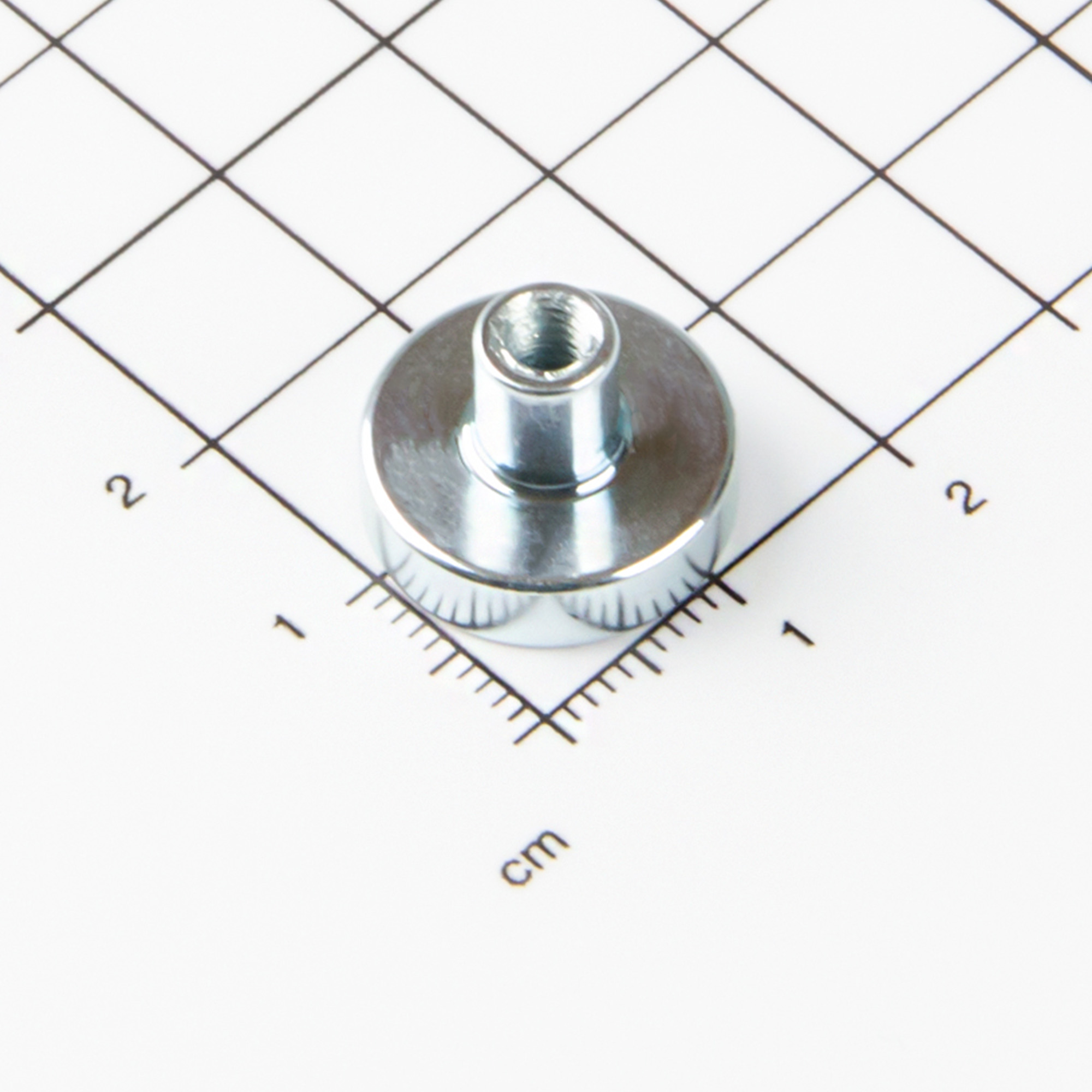

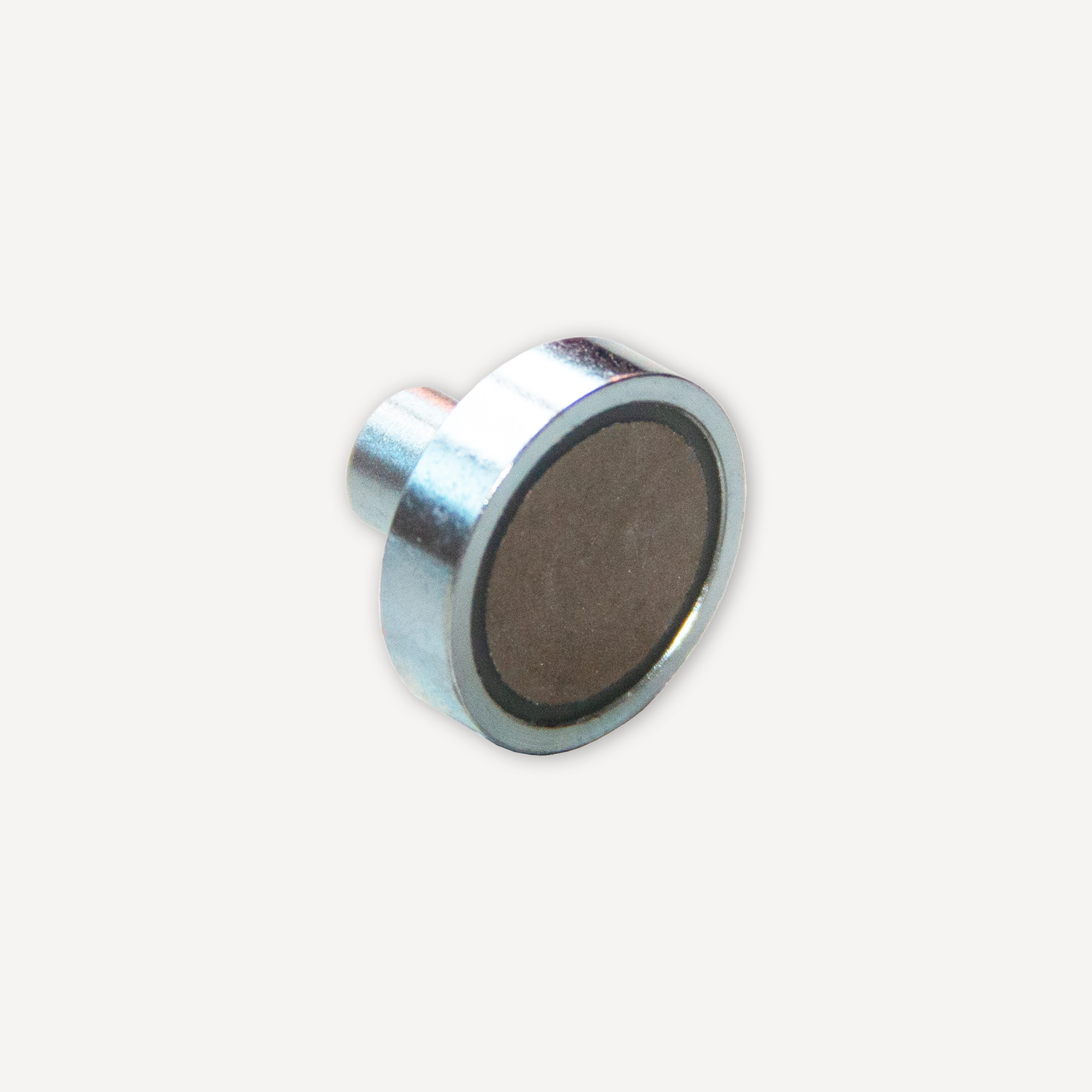

Pot magnets made of samarium cobalt Ø16x4.5mm with screw socket
Pot magnets are Samarium Cobalt magnets that are built into a steel cup. At a size of Ø16x4.5mm, this Samarium Cobalt pot magnet has a holding force of 60 newtons (approx. 6 kg) and can be quickly mounted using the central threaded bush M4. Temperature resistant up to 200°C.
€9.28
Content:
1
Shipping in 1-2 business days
Quantity
Unit price
From
1
€9.28
From
20
€7.84
From
50
€6.31
From
100
€5.12
Total:
Product number:
36005
Product features
- Can be used at temperatures up to 200°C without permanent loss of holding force due to the use of a samarium-cobalt magnetic core.
- Quick and safe mounting via the central threaded bush.
- The steel cup protects the magnet and shields the magnetism from the outside.
- The field lines are directed through the steel casing to the free holding surface, which increases the holding power of the magnet.
- Thanks to the steel cup, these magnet systems are durable and more robust than raw magnets.
- The holding surface is ground.
Description
| Diameter ØD (mm): | 16 |
|---|---|
| Height (mm): | 4,5 |
| Thread size M: | M4 |
| Thread length L (mm): | 11,5 |
| Holding force (N): | 60 |
| Magnet material: | samco |
| Surface coating: | zinc coated |
| Housing material: | steel |
| Color: | silver |
| Temperature resistance (°C): | 200 |
| Weight (kg): | 0.007 |
Technical Drawing
Areas of application
Magnetic systems with a magnetic core made of samarium cobalt (SmCo) are used in a variety of industrial and technical applications where high magnetic force, thermal stability and corrosion resistance are required. Due to their properties, SmCo flat grippers have a long service life and are used primarily in technically demanding environments:
- High-temperature applications: Samarium cobalt magnets have higher holding forces than ferrite or AlNiCo and exhibit very good temperature resistance. This makes them ideal for fastening tasks in high-temperature applications such as drying ovens or powder coating systems. Where magnets such as neodymium lose their holding force due to thermal stress, samarium cobalt magnets can be used without hesitation to hold flaps, covers and workpieces.
- Workpiece handling: Samarium cobalt pot magnets are a popular choice for holding workpieces such as hot castings or flame-cut pieces during processing. They can also be used to hold ferrous parts at specific angles during welding, ensuring a clean finish.
- Shipbuilding and offshore installations: SmCo magnets offer exceptional corrosion resistance and are therefore particularly suitable for use in demanding environments where conventional materials are quickly affected by moisture or aggressive chemicals. In shipbuilding and offshore installations, they are used for temporary fixtures such as securing tarpaulins or components. They can withstand salty air and water without any problems.
