Art. Nr: 36294

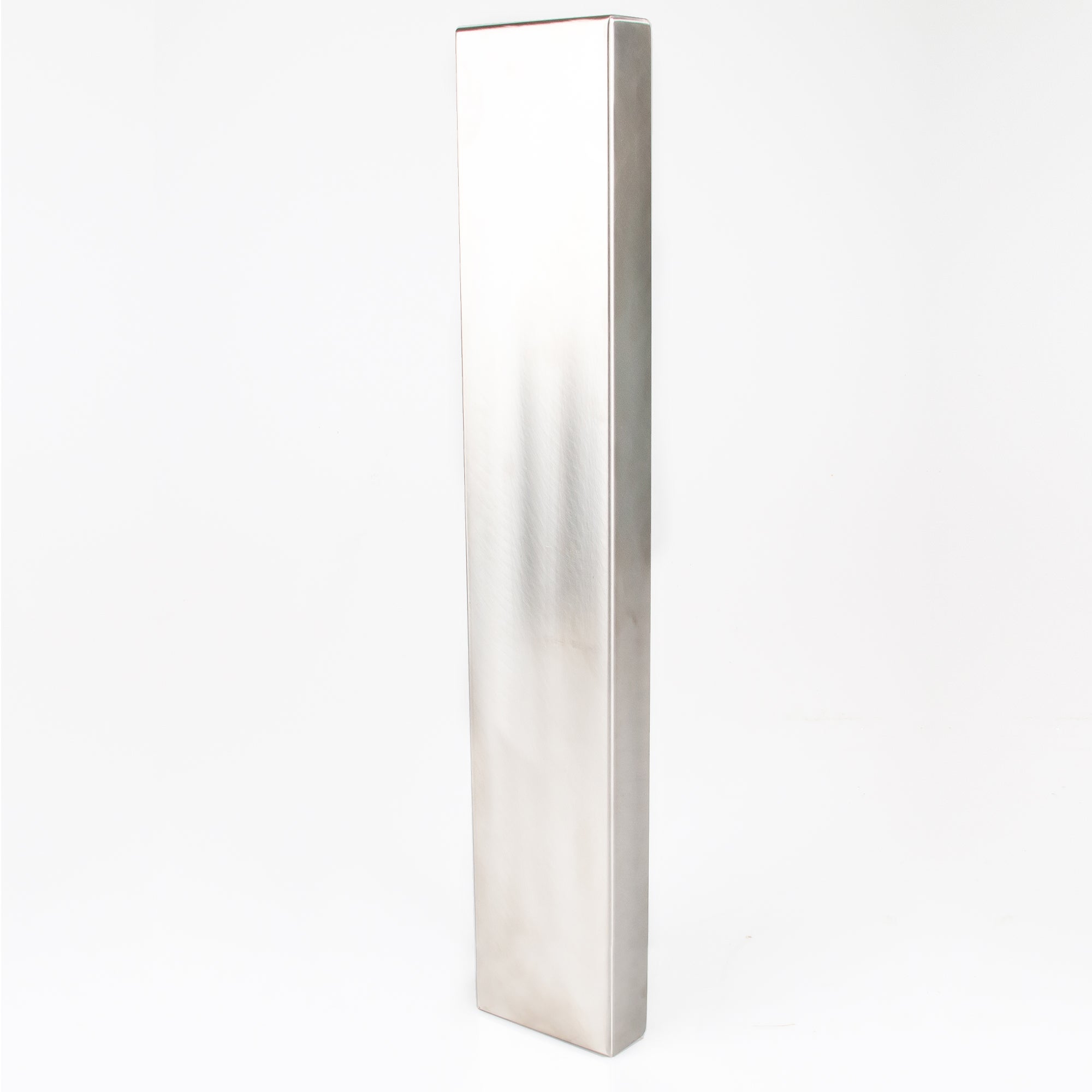

Plate separation magnet 610x103x38mm

Plate separation magnets are used in mills, above conveyor belts or chutes for cleaning. They are equipped with strong ferrite magnets and attract ferromagnetic impurities such as iron filings magnetically.

€797.75

Content: 1

Prices excl. VAT plus shipping costs

MagnaC.stockWarning

Quantity

Unit price

From 1

€797.75

From 5

€729.71

Total:

Product number: 36294

Product features

A magnetic field that extends far out allows for the highest cleaning results.
Jump height 60mm for steel nut M5, 100mm for screw M5x30mm.
Reduces scrap during further processing.
The cleaning increases the value of the material or the textile webs. It reduces the wear and tear of downstream processing machines and their failures.
Occasionally, you can wipe the trapped parts off the magnetic surface.
Sealed housing. Effective side with stainless steel tray.
Rear plate with threaded holes.
Maximum operating temperature 100°C.
Permanently magnetic, therefore independent of the mains.

Description

Length (mm):	610
Width (mm):	103
Height (mm):	38
Magnet material:	ferrite
Housing material:	stainless steel
Color:	silver
Temperature resistance (°C):	60
Weight (kg):	13

PDF Data Sheet

Areas of application

Plate separation magnets are used in industrial processes to remove ferromagnetic contaminants such as iron filings from material streams. They consist of strong ferrite magnets encased in a rugged steel housing. The collected metal parts can be manually removed from the magnet surface. The use of such plate magnets not only improves the quality of the end product, but also reduces wear on downstream machines.

Mills: Here the magnets are used to filter metal particles from the ground material, thus ensuring product quality.

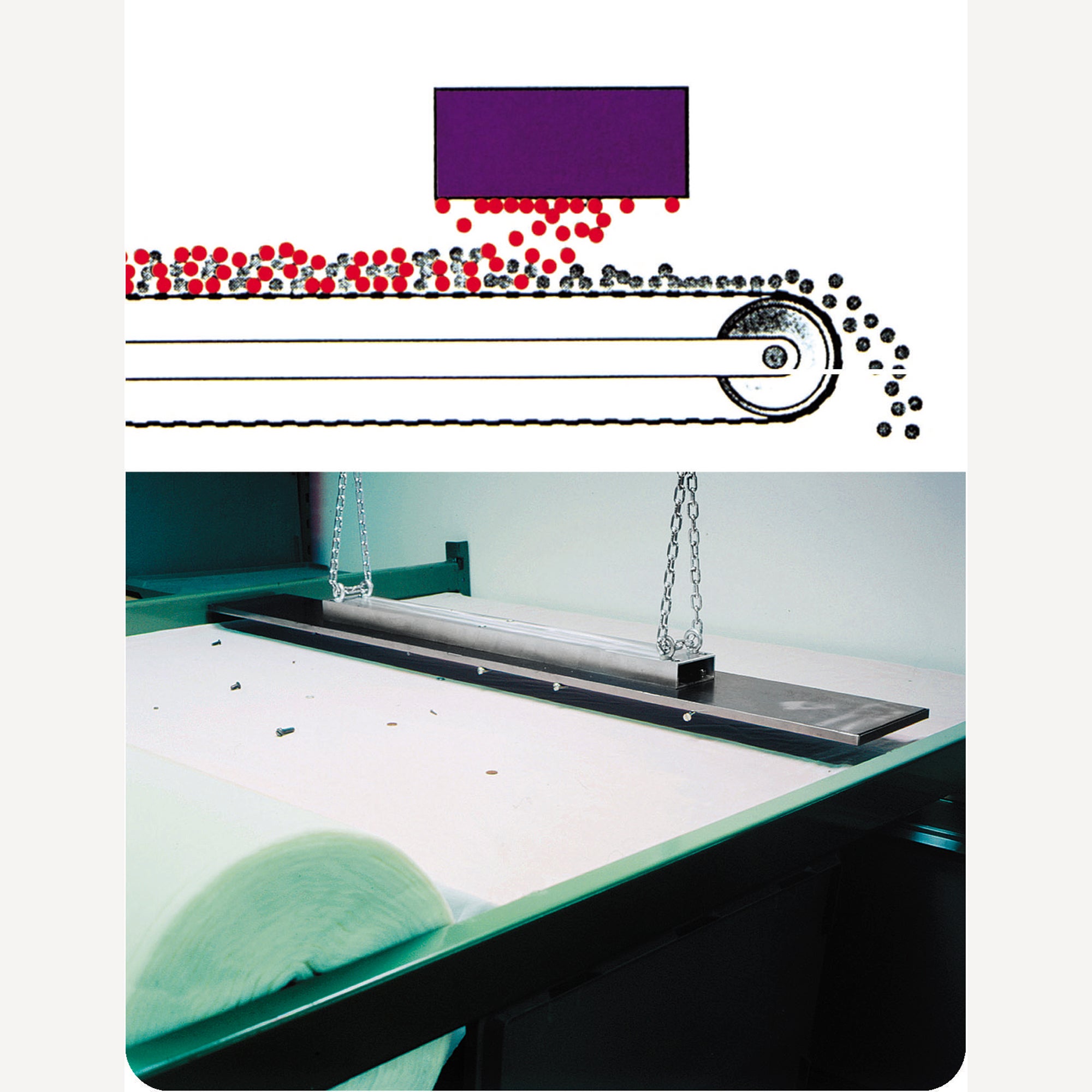

Conveyor belts and bulk material feeders: When installed above these transport routes, unwanted metal parts are removed from bulk materials before they enter further processing stages.
