Art. Nr: 37220

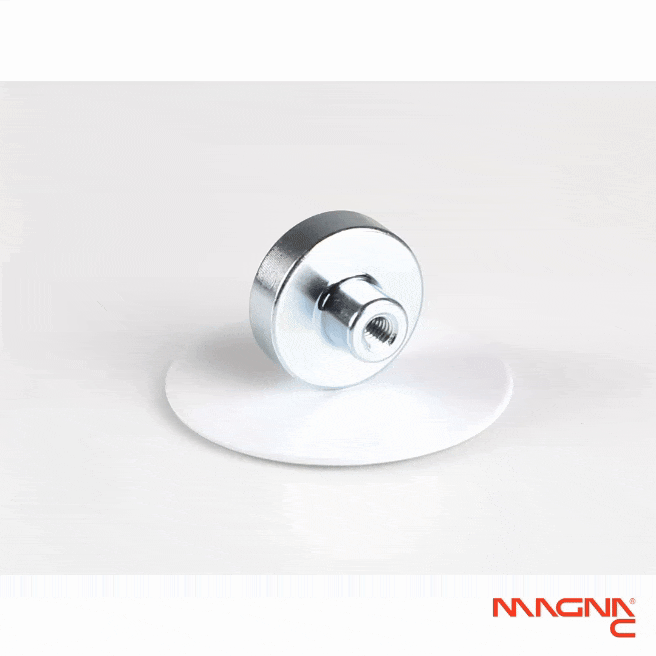

Neodymium pot magnets with threaded bush Ø20x13mm

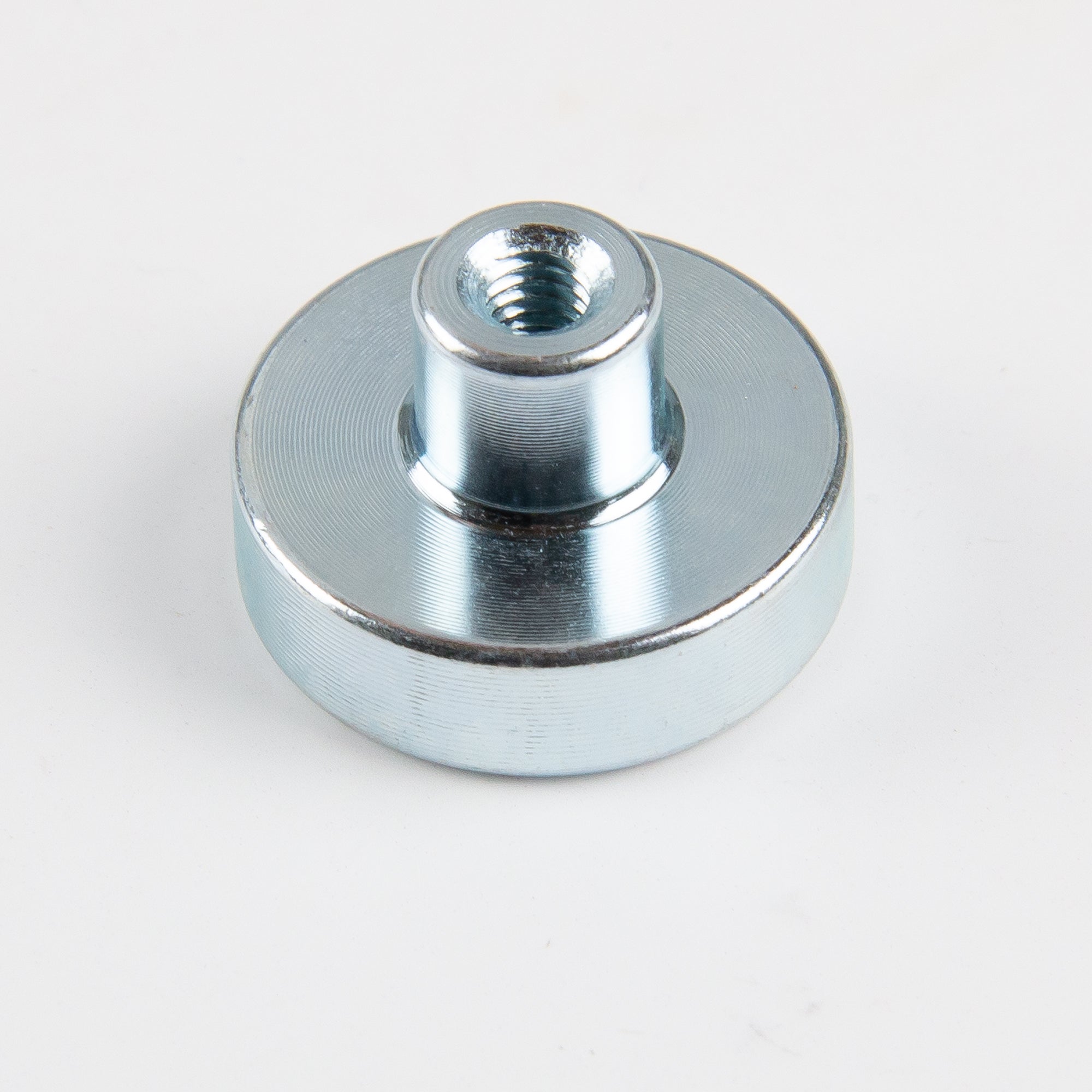

Pot magnets are neodymium magnets that are built into a steel cup. With a total size of Ø20x13mm, this neodymium pot magnet with an M4 threaded socket has a holding force of 140 newtons (approx. 14 kg) and is ideal for use in mechanical engineering, trade fair construction or apparatus engineering.
€8.64
Content:
1
Shipping in 1-2 business days
Quantity
Unit price
From
1
€8.64
From
20
€8.36
From
50
€7.16
From
100
€6.57
From
500
€5.44
Total:
Product number:
37220
Product features
- Magnetic systems with extremely high holding forces offer safety and open up a wide range of applications.
- The central M4 screw thread allows the systems to be optimally screwed into their surroundings.
- The steel cup protects the magnet and shields the magnetism from the outside.

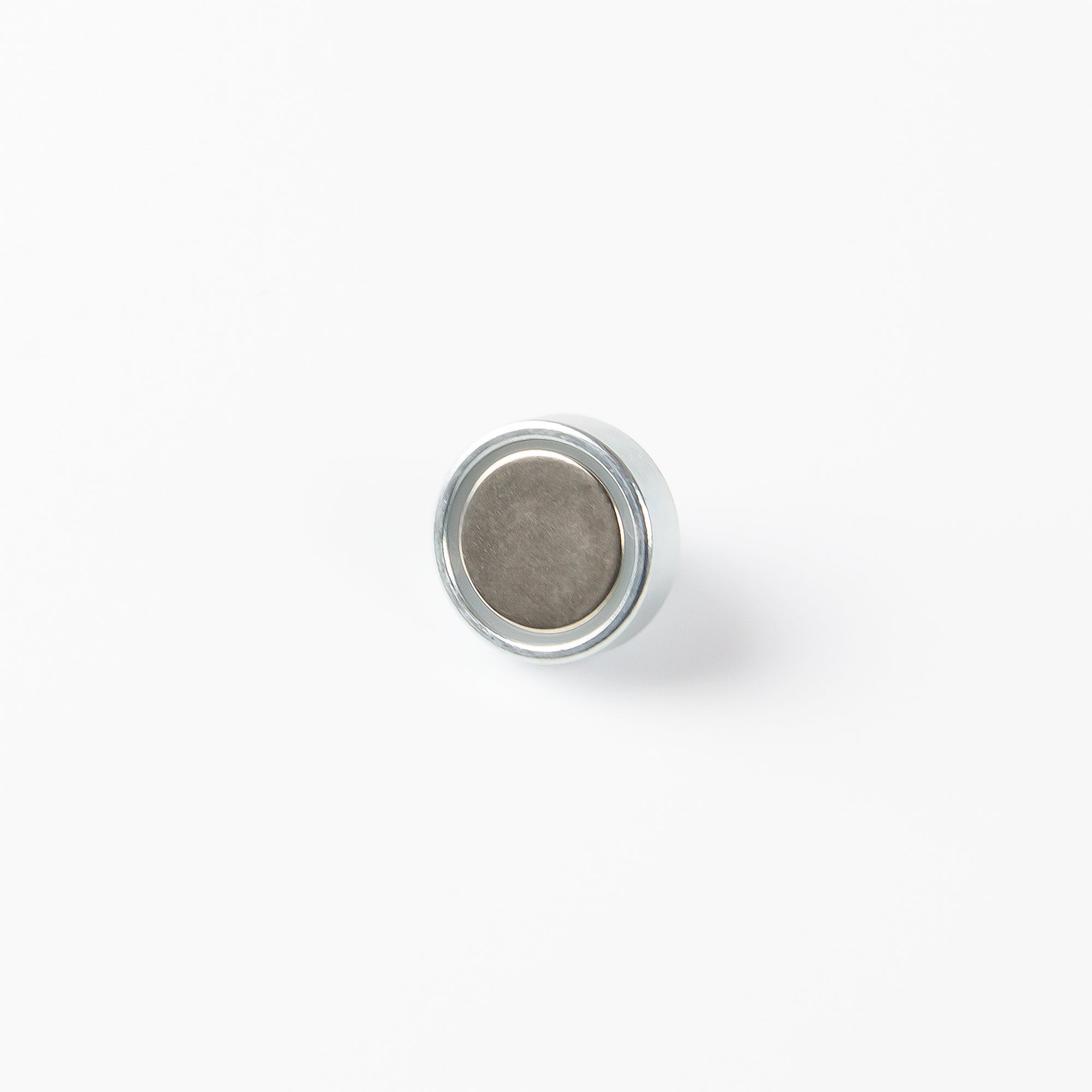

- The field lines are directed through the steel casing to the free adhesive surface, which increases the holding force of the magnet.
- Thanks to the robust steel cup, these magnet systems are durable and easier to assemble than raw magnets.
Description
| Diameter ØD (mm): | 20 |
|---|---|
| Height (mm): | 6 |
| Diameter Ød1 (mm): | 8 |
| Thread size M: | M4 |
| Thread length L (mm): | 7 |
| Holding force (N): | 140 |
| Magnet material: | neodymium |
| Surface coating: | zinc coated |
| Design: | with threaded bushing |
| Housing material: | steel |
| Color: | silver |
| Temperature resistance (°C): | 80 |
| Tolerance (mm): | 0,1 |
| Weight (kg): | 0.016 |
Technical Drawing
Areas of application
Neodymium pot magnets with internal threads are extremely versatile due to their combination of strong holding power and easy mounting options, and are used in many industries. They allow for quick, easy and often tool-free attachment of objects. This is particularly useful in situations where temporary fixation or frequent attachment and removal is required:
- Shopfitting and exhibition stand construction: In shopfitting or at trade fairs, neodymium pot magnets are often used for the quick and easy assembly of presentations or stands. The internal thread allows for easy attachment of brackets and supports. In addition, the magnet allows for quick repositioning.
- Magnetic holders: These are perfect for applications where a temporary or permanent magnetic mount is needed, such as when mounting devices or machine components. Wall- or perforated-plate-mounted flat grippers with internal threads are also excellent tool holders!
- Technical applications: In the technical field, these magnets are used to hold components in place during manufacturing or maintenance, or to perform temporary fixings during assembly. Craftsmen and technicians use them to securely attach tools or materials while they work, or to keep them nearby, which is particularly useful during repairs or maintenance work.
