Art. Nr: 35352

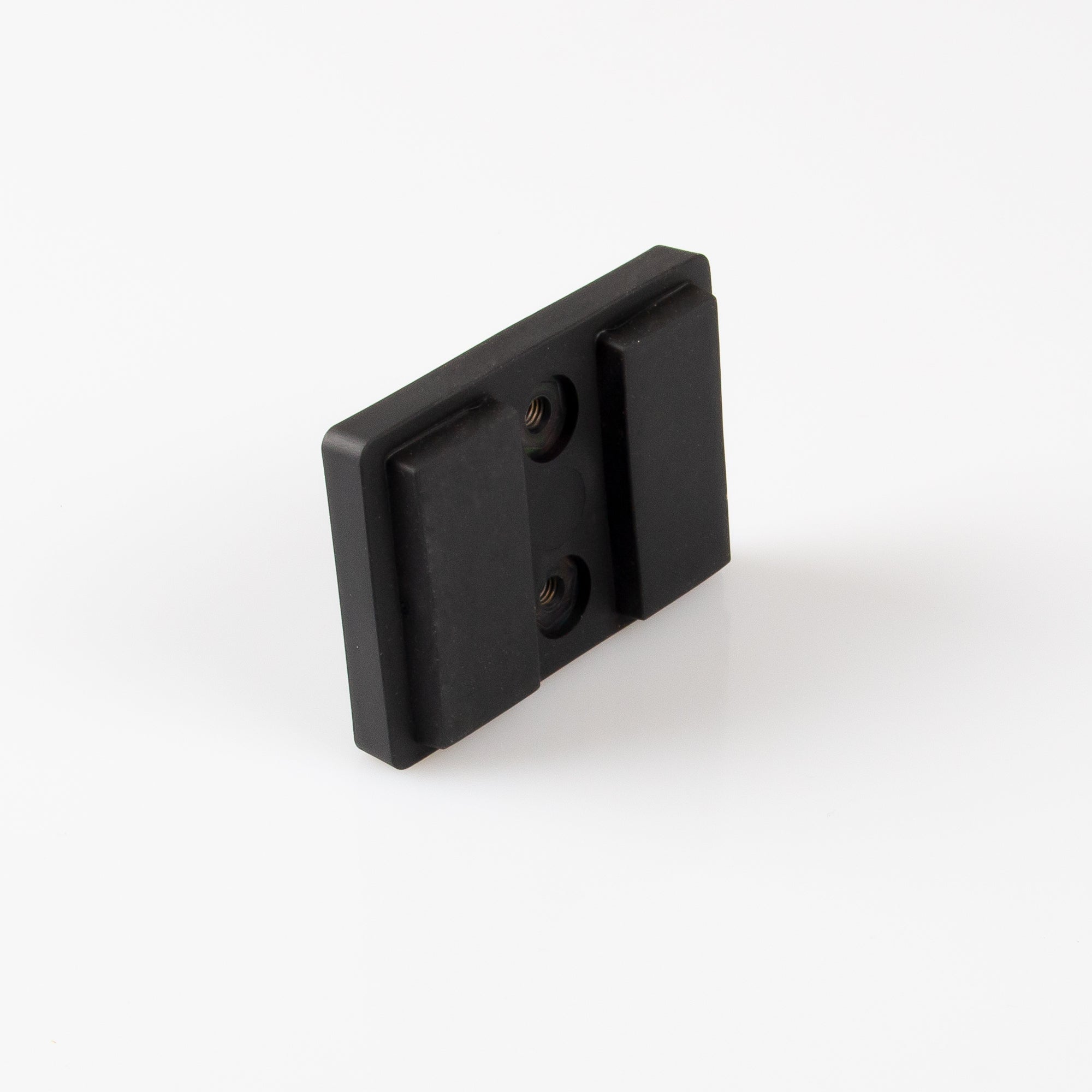

Magnet system for flat and round painted surfaces 70x50x13mm
Perfect anti-slip protection thanks to rubber coating and strong holding force of 290 newtons (approx. 29 kg). This rubberized magnet is also suitable for rounded surfaces due to its adhesive surface. The 2x M5 internal threads guarantee quick installation.
€17.17
Shipping in 1-2 business days
€17.17
€15.49
€13.10
€11.49
Product features
- The high holding force of neodymium magnets, reinforced by mounting on a pole plate, provides a secure hold.

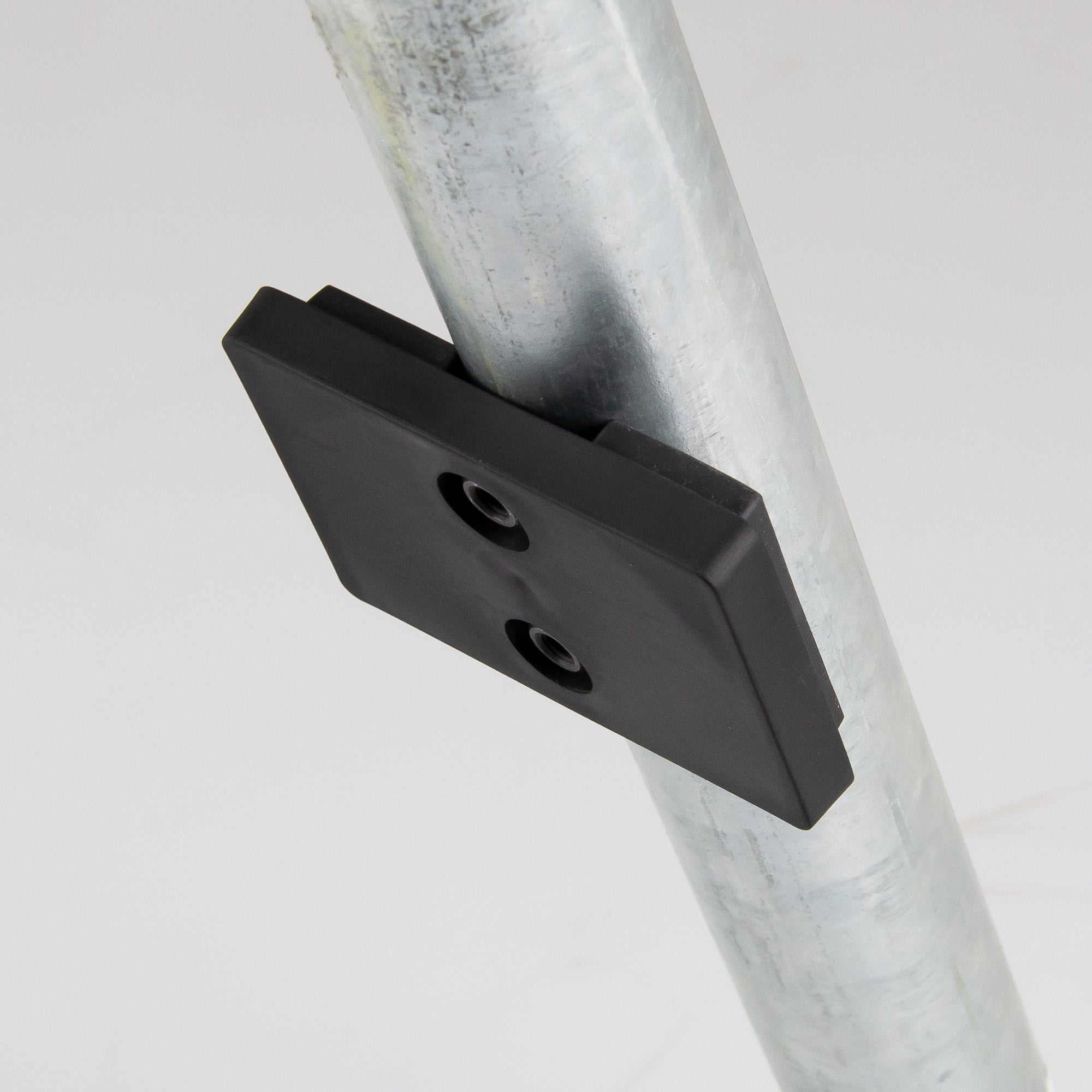

- Also suitable for round surfaces such as bars.
- Rubber-coated on all sides, this rectangular system provides optimal protection for the system and the surface to which it is attached.
- The magnet system can be easily attached using the internal thread on the non-magnetic side.
- Careful treatment of sensitive/painted surfaces thanks to soft rubber with high shear force.
- No residue of any kind on the holding surface at temperatures up to 80°C.
Description
| Length (mm): | 70 |
|---|---|
| Width (mm): | 50 |
| Height (mm): | 13 |
| Thread size M: | M5 |
| Holding force (N): | 290 |
| Design: | with internal thread |
| Housing material: | rubber |
| Color: | black |
| Temperature resistance (°C): | 80 |
| Weight (kg): | 0.15 |
Areas of application
Square rubber-coated magnet systems are the ideal solution when a high holding force needs to be combined with a protective rubber coating – especially in confined spaces. This magnet system can even be attached to round surfaces using the adhesive surface. The square shape allows for optimal use of space, while the rubber coating protects sensitive surfaces and prevents slipping. Thanks to the internal thread, the magnet systems can be screwed together quickly and securely:
- Advertising industry: Square, rubberized magnet systems are perfectly suited for use in advertising signs and banners. They allow for stable attachment to metallic surfaces, such as vehicles, poles or exhibition stands, without damaging the substrate. The non-slip rubber coating protects the paint and prevents scratches – ideal for flexible and residue-free installations.
- Trade show exhibits: These magnet systems provide a versatile solution for mounting display walls, lights or decorative elements. They are space-saving in shape and the rubber coating ensures a firm hold without damaging the metal structures of the stands. Thanks to their special adhesive surface, they also adhere to poles and curved surfaces.
- Industrial applications: Rectangular magnet systems with a rubber coating are particularly suitable for industrial applications, such as the temporary attachment of tools, sensors or covers. They ensure stability even in vibrating environments and can be easily removed without leaving any residue.
