Art. Nr: 37692

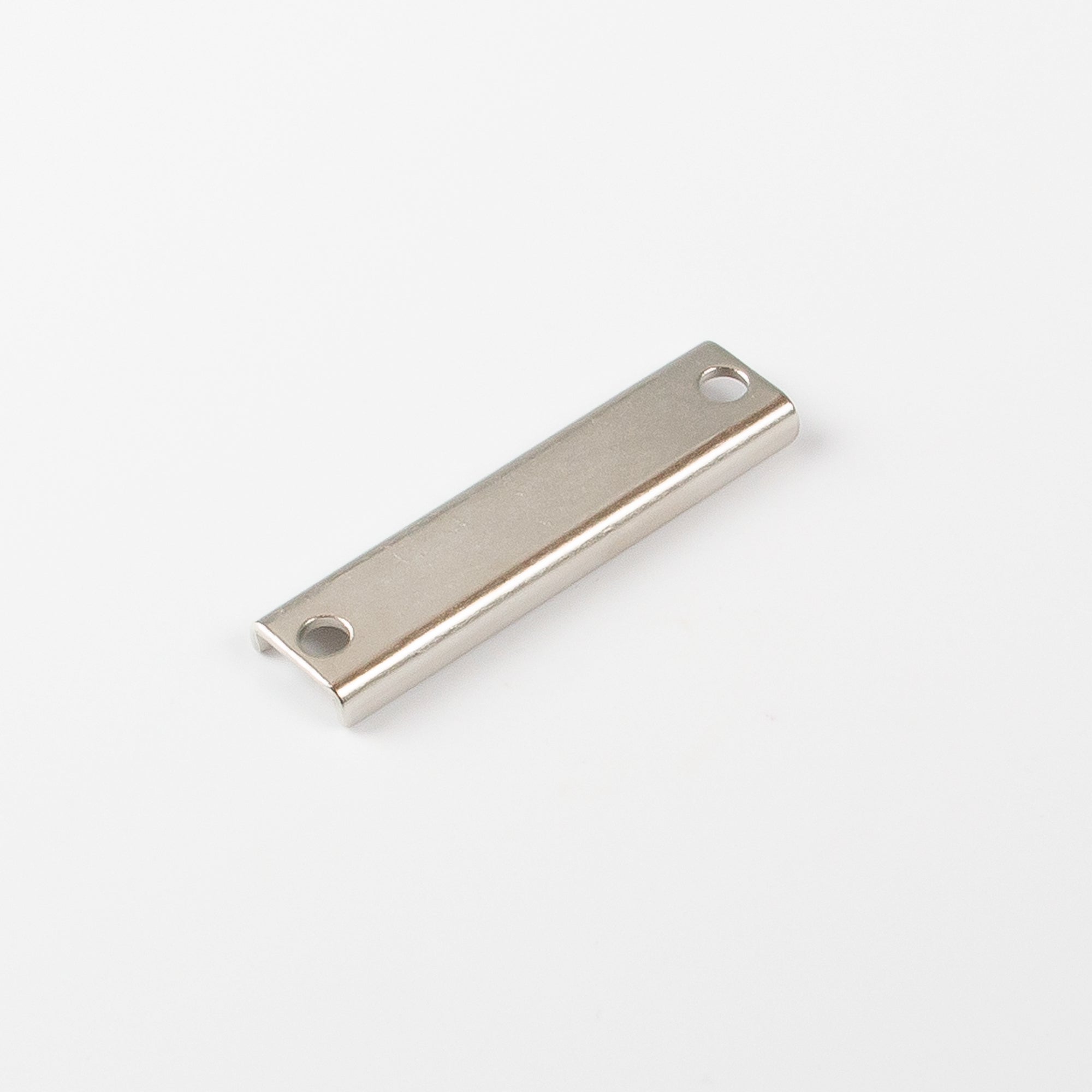

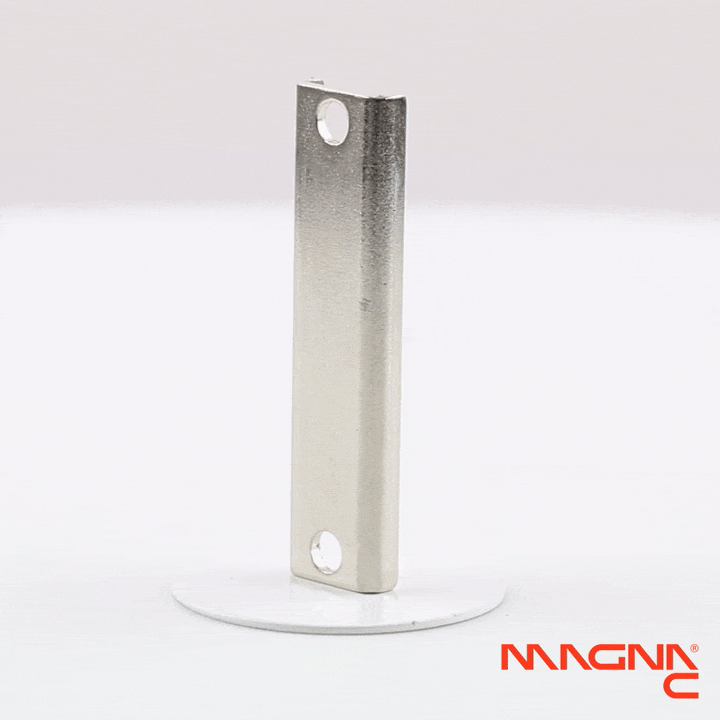

Flat bar with neodymium core 60x15x5mm in long U-profile
Flat bars are a good alternative to standard pot magnets if you have long, narrow installation spaces. The neodymium magnet is protected in the U-profile and can be mounted quickly and easily through the side holes.
€5.78
Content:
1
Shipping in 1-2 business days
Quantity
Unit price
From
1
€5.78
From
20
€4.87
From
50
€4.42
From
100
€3.59
Total:
Product number:
37692
Product features
- Neodymium magnet is glued into and protected by the U-shaped steel profile.
- Extreme holding power, distributed long and narrow, provides protection against twisting.
- Neodymium magnet is nickel-plated and the profile is made of galvanized sheet steel.
- Perfect for installation in slots.
- Easy to attach using holes in the rail base.
- The screw head disappears into the rail profile and does not put any strain on the magnet core.
Description
| Length (mm): | 60 |
|---|---|
| Width (mm): | 15 |
| Height (mm): | 5 |
| Diameter Ød1 (mm): | 5 |
| Hole spacing a: | 52 |
| Holding force (N): | 155 |
| Magnet material: | neodymium |
| Surface coating: | nickel coated |
| Housing material: | steel |
| Color: | silver |
| Temperature resistance (°C): | 80 |
| Weight (kg): | 0.022 |
Technical Drawing
Areas of application
Neodymium flat strips in a long U-profile are ideal for tight installation conditions where high holding force is needed in the smallest of spaces. They can be mounted using the outer holes, are ready for immediate use and are practically maintenance-free. Many applications benefit from the properties of these flat strips:
- Mechanical engineering and industry: In industrial plants, neodymium flat bars are used to fix covers and protective devices. Thanks to the strong holding forces, external forces caused by vibrations during manufacturing processes and maintenance work can be bridged.
- Joinery and furniture making: The neodymium flat bar in the long U-profile is ideal for installation in grooves. The long, slender shape allows the holding force to be optimally distributed over a thin surface, enabling a range of holding and fastening tasks to be performed.
- Tool holder: Mounted on workbenches or workshop walls, they can be used to hold tools and small iron parts. This allows you to create a magnetic holding surface anywhere you like, keeping your work surface tidy.
